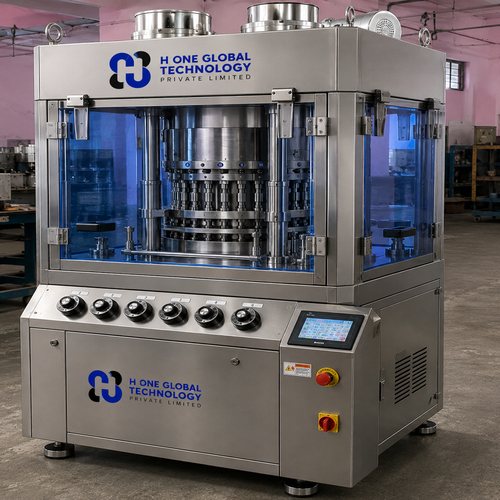

Automatic Tablet compression machine 20 STN

Name: Automatic Tablet compression machine 20 STN
Brand: H ONE GLOBAL TECHNOLOGY PVT. LTD.
Price: 510000.0 INR
Availability: InStock

Price 510000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Automatic Tablet compression machine 20 STN Specification

Features
Centralized lubrication, safety interlocks, dust extraction nozzles, digital tablet counting, force feeder, easy cleaning, touch screen control panel, noise reduction architecture

Usage & Applications
Pharmaceutical, Nutraceutical, and Confectionery tablet production

Temperature
Ambient operating temperature 5-40C

Phase
Three Phase

Noise Level
75 dB

Frequency
50/60 Hz

Type
Automatic Tablet Compression Machine 20 STN

Material
Stainless Steel (GMP Grade)

Capacity
Up to 120,000 tablets per hour (varies with tablet size and weight)

Computerized
Yes, with touch screen Human Machine Interface (HMI)

Control Mode
PLC controlled with automatic operation

Voltage
415V AC

Power
Approx. 4 kW

Weight (kg)
~1600 kg

Dimension (L*W*H)
Approx. 1300 x 1100 x 1850 mm

Color
Silver with blue-tinted glass panels

Number of Stations
20

Safety Features
Overload protection, emergency stop button, upper and lower guard limit switches

Pre-compression Pressure
Up to 10 kN

Operation Panel
7-inch Color HMI Touch Panel

Main Drive Motor
4 HP (Heavy Duty)

Max. Main Pressure
100 kN

Exhaust Port
Dual exhaust with HEPA filtration

Output per Hour
Up to 120,000 tablets (varies per design)

Material Contact Parts
SS 316

Tablet Thickness Adjustment
Micrometric adjustment mechanism

Lubrication System
Automatic lubrication with monitoring

Turret Speed
10-60 RPM adjustable

Compliance
cGMP, CE certified

Max. Fill Depth
20 mm

Turret Material
SS 304/316 Hardened & Ground

Max. Tablet Diameter
25 mm

Power Supply Tolerance
10%

Automatic Tablet compression machine 20 STN About

20 Station Tablet Compression Machine

The 20 Station Tablet Compression Machine is a high-performance pharmaceutical machine designed for the efficient production of tablets with excellent accuracy and consistency. Manufactured using premium-grade stainless steel, this machine is ideal for pharmaceutical, nutraceutical, herbal, chemical, and food industries. It delivers uniform tablet weight, thickness, and hardness while ensuring smooth and reliable operation.

The machine is equipped with a user-friendly control panel, robust construction, and precision-engineered tooling for long service life and minimal maintenance. It is designed in compliance with GMP standards, making it suitable for continuous production with high efficiency.

Features

20 Station Rotary Tablet Compression Machine
Heavy-duty stainless steel construction
High production efficiency and accurate tablet compression
Easy operation and low maintenance
Uniform tablet weight and hardness
GMP-compliant design
Low noise and vibration
Easy cleaning and quick changeover
Suitable for round, shaped, and engraved tablets
Long operational life

Applications

Pharmaceutical Industry
Nutraceutical Industry
Herbal Products
Food Industry
Chemical Industry

Product Specifications

Machine Type: Rotary Tablet Compression Machine
Stations: 20
Material: Stainless Steel (SS 304 / SS 316 Contact Parts Optional)
Operation: Automatic
Power Supply: 3 Phase, 415V, 50Hz
Usage: Tablet Manufacturing
Condition: New
Brand: H One Global Technology Pvt. Ltd.

Exceptional Tablet Production Capacity

This automatic tablet compression machine accommodates up to 20 stations and operates at turret speeds adjustable from 10 to 60 RPM, expertly producing up to 120,000 tablets per hour depending on the tablet's size and weight. Its heavy-duty 4 HP drive motor, force feeder, and digital tablet counter enable efficient, accurate, and consistent output, making it ideal for high-volume production environments.

Advanced Safety & Compliance Standards

Designed with operator safety and regulatory compliance in mind, the machine includes overload protection, emergency stop buttons, upper and lower guard interlocks, and cGMP as well as CE certifications. HEPA-filtered dual exhaust ports, dust extraction nozzles, and a noise reduction architecture guarantee a safe and comfortable working environment while protecting product quality.

Intuitive Operation & Maintenance

The 7-inch color HMI touch panel and PLC-controlled automated systems streamline setup, adjustment, and monitoring. Features like automatic lubrication with continuous monitoring and micrometric thickness adjustment ensure hassle-free maintenance and consistent production quality. Tool-free cleaning and stainless steel GMP-grade contact parts further facilitate operational efficiency and hygiene.

FAQ's of Automatic Tablet compression machine 20 STN:

Q: How does the Automatic Tablet Compression Machine 20 STN ensure tablet quality and consistency?

A: The machine uses a combination of precise controls such as micrometric tablet thickness adjustment, PLC-controlled pressure (up to 100 kN), and an HMI touch screen panel for accurate monitoring. The force feeder and digital tablet counting system further help maintain consistent dosage and size for each tablet batch.

Q: What are the main safety features incorporated in this machine?

A: Key safety features include overload protection, an emergency stop button, upper and lower guard limit switches, safety interlocks, dust extraction nozzles, and a low-noise design. These help to protect both the operator and the machine during operation.

Q: When should the lubrication system be maintained or refilled?

A: This tablet compression machine is equipped with an automatic lubrication system featuring built-in monitoring. Maintenance or refilling is only required when the system indicates low lubricant levels or alerts occur on the HMI panel, ensuring continued smooth operation and longevity.

Q: Where is this tablet press best used?

A: The Automatic Tablet Compression Machine 20 STN is best suited for use in pharmaceutical, nutraceutical, and confectionery production facilities, especially environments that require high-throughput, hygienic, and compliant tablet manufacturing processes.

Q: What is the cleaning process for this tablet press?

A: Cleaning is facilitated by the machine's easy-access design and use of GMP-grade stainless steel contact parts. Operators should follow standard cGMP protocols, using appropriate cleaning agents, and benefit from tool-free disassembly for efficient routine maintenance.

Q: How does the touch screen control panel enhance operation?

A: The integrated 7-inch color HMI touch panel offers intuitive control over production settings, real-time monitoring of all critical parameters, maintenance alerts, and error notifications, simplifying processes and improving operational efficiency.

Q: What are the main benefits of using this compression machine in tablet production?

A: Benefits include high-speed output, precise and consistent tablet quality, reduced manual intervention due to automated and computerized control, robust safety measures, ease of cleaning, and full compliance with international regulatory standards like cGMP and CE.
